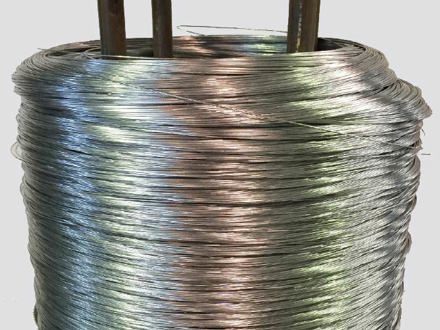

Eclipse -Manufacturing Wire

Zinc/aluminium coated manufacturing wire is generally produced to meet the property specifications set out in the tables below. However, manufacturing wire can be produced with a range of coating thicknesses and with any combination of low, medium, or high tensile strengths.

Testing Information

The zinc/aluminium coatings are manufactured to AS/NZS4534:2006 Zinc and Zinc/Aluminium-Alloy coatings on Steel Wire.

High Tensile

DIAMETER (mm)	TENSILE STRENGTH(MPa)	BREAKING LOAD	MINIMUM COATING WEIGHT (g/m²)	WRAP TEST
1.60±0.05	1080-1235	(220-225 kgf)	100	pass
2.00±0.07	1235-1450	(395-465 kgf)	120	pass
2.50±0.07	1235-1450	(620-725 kgf)	125	pass
3.15±0.08	1050-1250	(835-995 kgf)	130	pass
4.00±0.10	1100-1400	(1410-1795 kgf)	140	pass

Medium Tensile

DIAMETER (mm)	TENSILE STRENGTH(MPa)	BREAKING LOAD	MINIMUM COATING WEIGHT (g/m²)	WRAP TEST
2.50±0.07	750-950	(375-475 kgf)	125	pass
3.15±0.08	700-850	(555-675 kgf)	130	pass

Low Tensile

DIAMETER (mm)	TENSILE STRENGTH(MPa)	BREAKING LOAD	MINIMUM COATING WEIGHT (g/m²)	WRAP TEST
1.60±0.05	430-525	(90-110 kgf)	110	pass
2.00±0.07	430-525	(140-170 kgf)	120	pass
2.24±0.07	430-525	(175-210 kgf)	120	pass
2.50±0.05	430-525	(215-265 kgf)	125	pass
2.80±0.08	430-525	(270-330 kgf)	130	pass
3.15±0.08	430-525	(340-415 kgf)	130	pass
4.00±0.10	430-525	(550-675 kgf)	140	pass
5.00±0.10	430-525	(860-1050 kgf)	150	pass
