Flat Head
| LENGTH (mm) |
DIAMETER (mm) |
WEIGHT (kg) |
|---|---|---|
| 60 | 2.80 | 0.5 / 5 / 25 |
| 75 | 3.15 | 0.5 / 5 / 25 |
| 75* | 5.30 | 25 |
| 100 | 4.00 | 0.5 / 5 / 25 |
| 125 | 5.30 | 0.5 / 5 / 25 |
| 150 | 6.30 | 0.5 / 5 / 25 |
| * Large head | ||

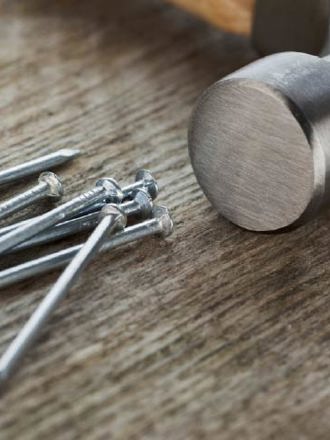

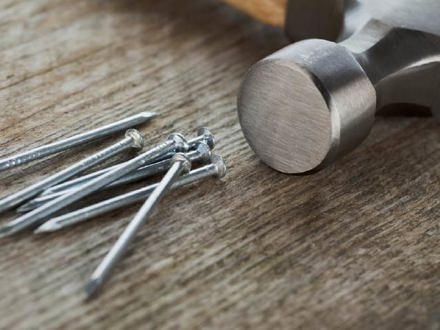

Eclipse -Nails
Eclipse's galvanised nail range offers long-term fastening solutions across a wide range of fencing and building applications. Designed for durability and reliable holding performance, the range provides practical fastening options for timber construction, fencing, vineyard and general outdoor applications. With a variety of head styles and configurations available, Eclipse's nails provide solutions suited to different installation and fixing requirements.
Jolt Head
| LENGTH (mm) |
DIAMETER (mm) |
WEIGHT (kg) |
|---|---|---|
| 60 | 2.80 | 0.5 / 5 / 25 |
| 75 | 3.15 | 0.5 / 5 / 25 |
| 100 | 4.00 | 0.5 / 5 / 25 |
Twisted Spring Head
Economical alternative to Nuway fastener, for use when weather-proofing is not required. Often used on utility sheds.
| LENGTH (mm) |
DIAMETER (mm) |
WEIGHT (kg) |
|---|---|---|
| 60 | 3.15 | 0.5 / 5 / 25 |
| 75 | 3.15 | 2.5 |
Nu Way Fasteners
Hot dipped galvanized with weather seal washer, suitable for roofing and cladding
| LENGTH (mm) |
DIAMETER (mm) |
QUANTITY |
|---|---|---|
| 60 | 4.00 | 50 / 300 |
| 75 | 4.00 | 50 / 300 |
Vineyard
Specially developed for the viticulture industry
| TYPE | LENGTH (mm) |
DIAMETER (mm) |
WEIGHT (kg) |
|---|---|---|---|
| Square Twist | 75 | 3.75 | 25 |
| Large Head | 75 | 5.3 | 25 |
