Eclipse Tightlock Fencing

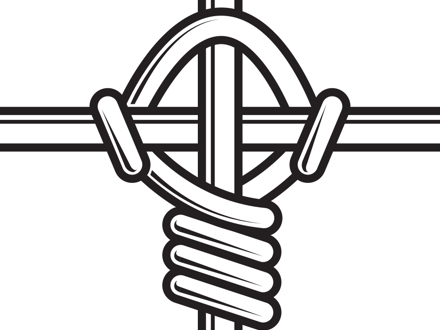

A Kiwi trusted, high quality fence Eclipse's Tightlock fence consists of line, stay and knot wires. Line wires are continuous in length and made from high tensile wire. The stay wires (vertical) are made from medium tensile wire and continuous in length. They combine with the knots and tension curves to create overall rigidity and elasticity. The knots are made from low tensile wire and can hold between 60-90kg per knot. The load of any impact will spread and dissipate over the full fence height and for some distance on either side.
Tech Spec

Line Wire Spacings

TYPE DESCRIPTION LINE WIRES HEIGHT
(mm)		 STAY WIDTH
(mm)		 LENGTH
(m)
DEER A11 / 1550 11 1550 150 / 300 100
A13 / 1900 13 1900 150 / 300 100
A16 / 1900 16 1900 240 100
FIELD  A7 / 900 7 900 150 / 300 50 / 100
A8 / 800 8 800 300 100
A8 / 900 8 900 150 / 300 50 / 100
 TOP UP A5 / 600 5 600 300 200
A5 / 900 5 900 300 200
